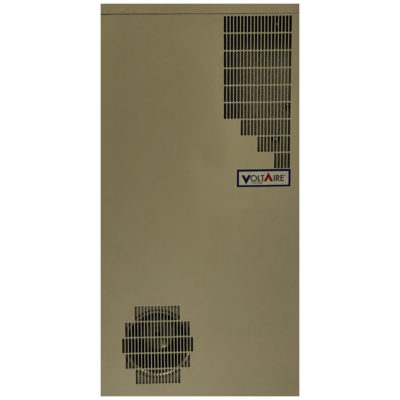

Cross Flow Heat Exchangers
VoltAire Systems’ HIX Series Cross Flow Heat Exchangers are designed to remove heat from telecom cabinets, telecom enclosures, OSP infrastructures, Industrial Applications, and Mission Critical Solutions that have sensitive electronics, servos, DC drives, or telecommunications equipment that needs protection from harsh environments. All of our heat exchangers are closed loop cooling ensuring an interior cabinet environment free of dust and humidity.
Approvals
NEMA 4 (4X)
UL 1995
File # SA44643
Standard Features
- UL Recognized
- Closed-loop certified UL Type 4(X) cooling for outside plant applications
- Fan speed and alarm control board (48VDC models only)
- High-performance centrifugal fans
- Epoxy-coated aluminum cross-flow core
- Designed in accordance with GR-487 specifications
- Stainless steel hardware
- Powder coated aluminum cover
- Corrosion resistant Acrylume enclosure
Optional Features
- Stainless steel cover
- Fan on/off temperature control (115/230VAC Models)
- Custom paint finishes
Applications
- Radio base stations
- Telecom shelters and indoor / outdoor OSP cabinets
- Network switching rooms and computer rooms
- Automation control cabinets, process control centers
- CNC machines
- Drive cabinets
- Mining equipment
- Oil and gas equipment
- Solar cabinets
- Power distribution cabinets
- Digital advertisement boards, kiosk display systems
- Power supply cabinets, battery cabinets, and rectifier cabinets
Technical Data
| Model | HIX18 (48VDC Only) | HIX25 (48VDC Only) | HIX35 | HIX45 | HIX55 | |
|---|---|---|---|---|---|---|
| Performance | ||||||
| Cooling Capacity | 18W/F- 33W/C | 25W/F- 45W/C | 35W/F-63W/C | 45W/F-81W/C | 55W/F-99W/C | |
| Operation Temperature (°F / °C) | -40 to 158 / -40 to 70 | |||||
| Sound at 3m (dBa) | 60 | 61 | 64 | 65 | 68 | |
| Electrical Data | ||||||
| Voltage Input | Current Draw (Amps) | |||||
| 48 VDC | 1.5 | 1.5 | 3.1 | 3.1 | 4.3 | |
| 115 VAC (50/60Hz) | Not Available | Not Available | 3.4 | 3.4 | 3.5 | |
| 230 VAC (50/60Hz) | Not Available | Not Available | 0.9 | 1.9 | 1.9 | |
| Unit Dimensions | ||||||
| Height (in/mm) | 22.8 / 579 | 35.5 / 902 | ||||
| Width (in/mm) | 11.8 / 300 | 17.6 / 447 | ||||
| Depth (in/mm) | 4.8 / 122 | 5.3 / 135 | 5.3 / 135 | 6.5 / 165 | 8.5 / 216 | |
| Weight (lbs/kg) | 19.2 / 8. 7 | 20.1 / 9.1 | 40.3 / 18.3 | 45.6 / 20.7 | 47.5 / 21.5 | |
